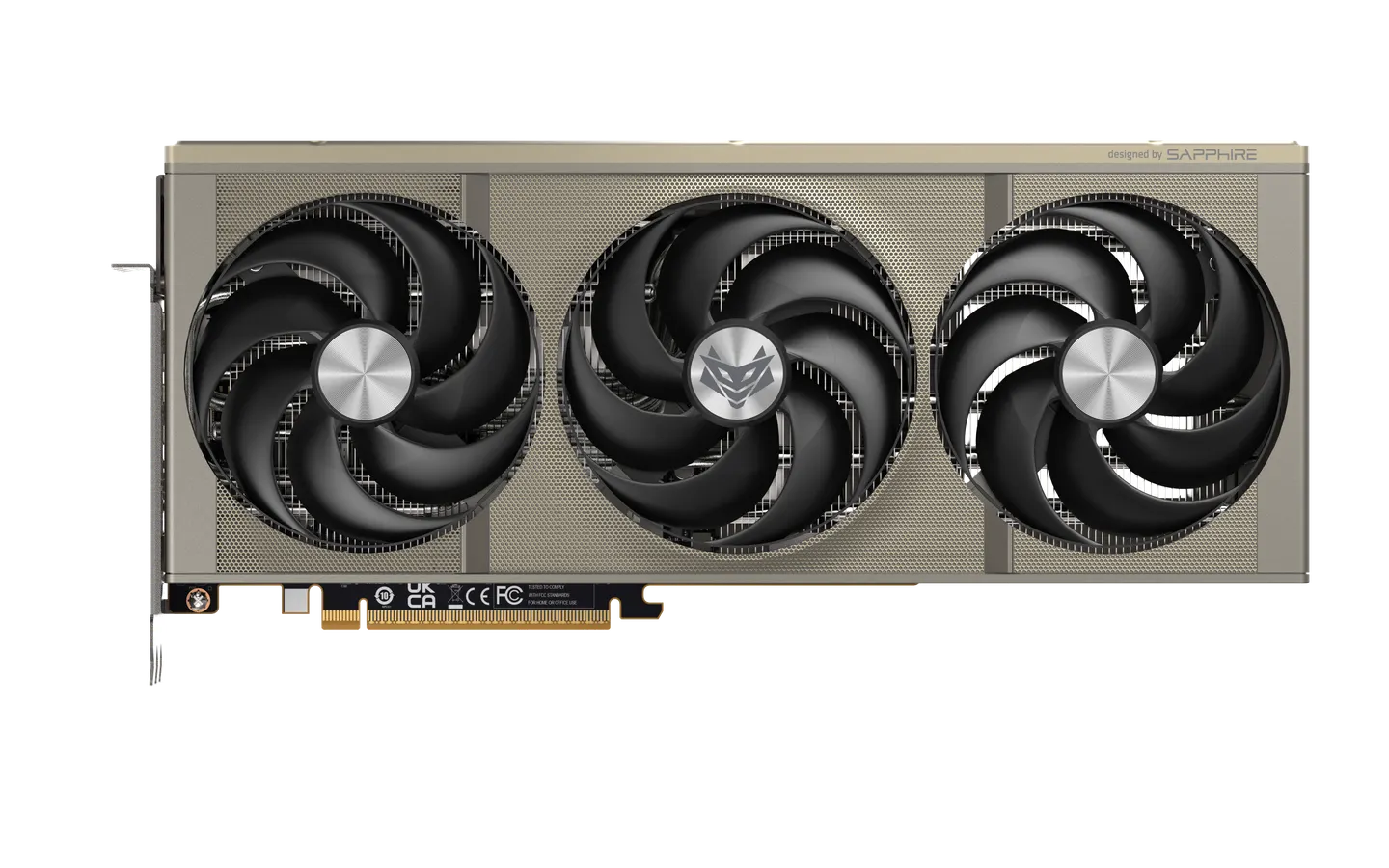

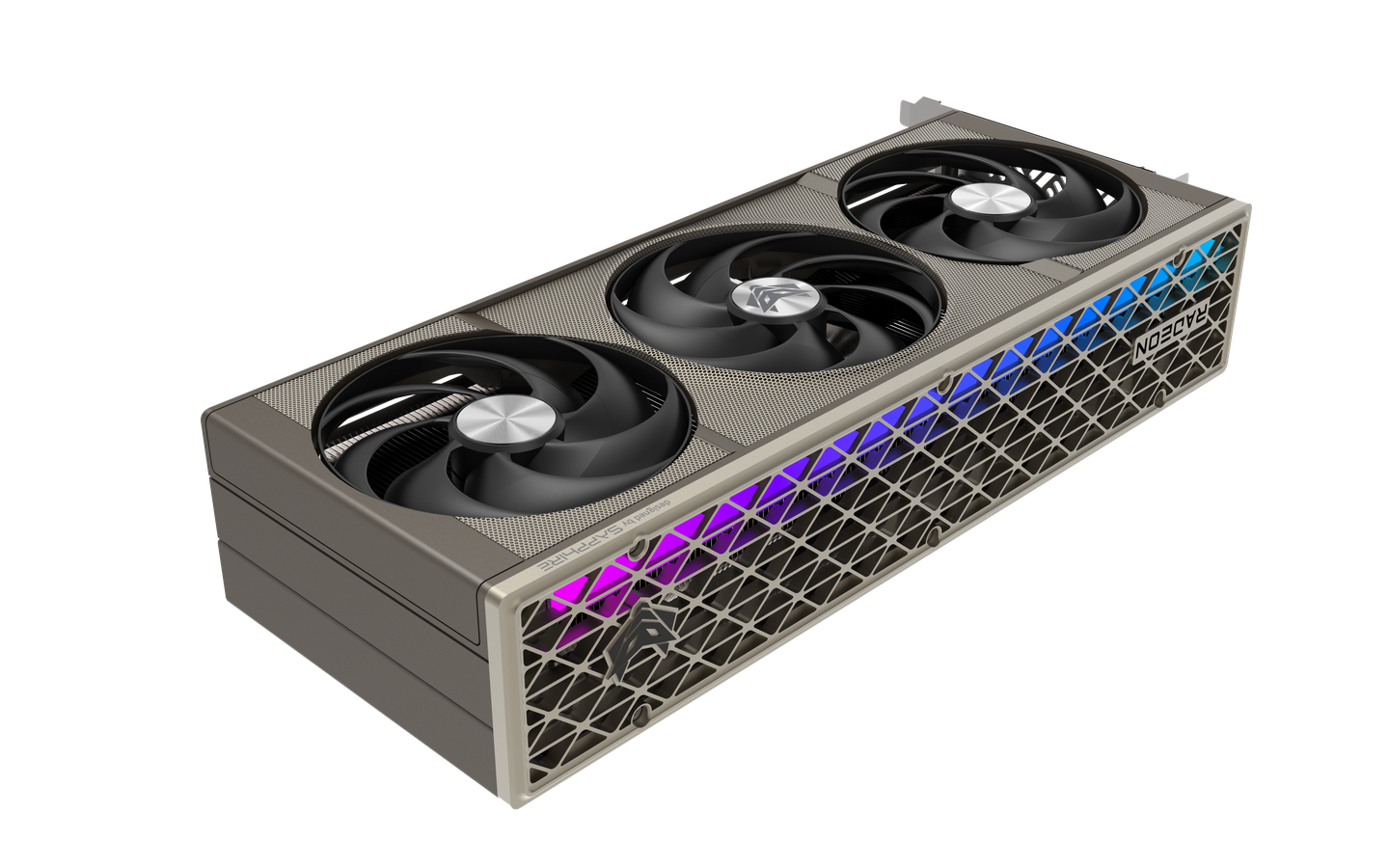

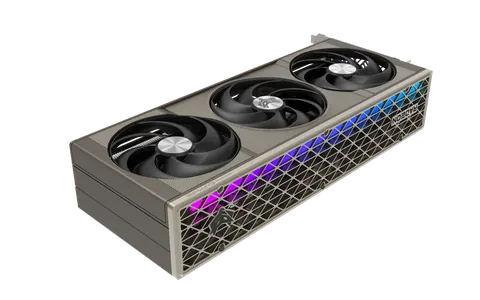

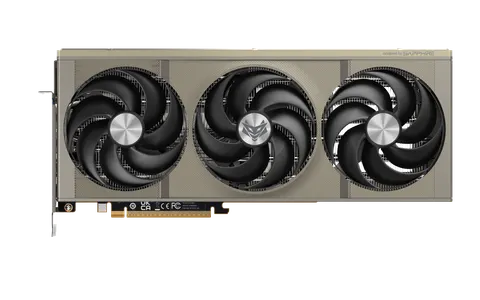

SAPPHIRE NITRO+Radeon RX 9070 XT OC 16GB
RDNA 4 · 16GB GDDR6 · NITRO+ cooling for high-performance gaming
NITRO+ RX 9070 XT
POWER DOES NOT NEEDTO HIDE.
- 16 GB
- GDDR6
- 3060 MHz
- Maximum boost
- RDNA 4
- Architecture
AMD RDNA 4 ARCHITECTURE
PLAY HIGHER.
A GPU designed to combine advanced rasterization, accelerated ray tracing and AI-assisted imaging technologies. This page does not promise universal percentages: results depend on the game, resolution and system configuration.
64Compute Units
64Ray Accelerators
128AI Accelerators
4096Stream processors
AMD HYPR-RXAFMF 2FSR 4 AI UpscalingRadiance Display EngineDisplayPort 2.1a
GDDR6 · 256 BIT · 20 GBPS
16GB.ROOM TO GO FURTHER.
16GB of GDDR6 memory provides headroom for high-resolution textures, modern graphics workloads and compatible content creation. Capacity alone does not replace a complete system performance assessment.
16 GBGDDR6256 bitMemory bus20 GbpsEffective

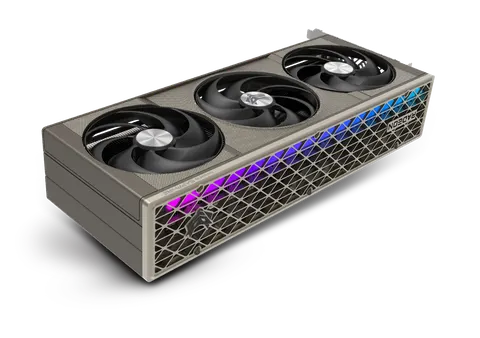

TRI-X COOLING TECHNOLOGY
330W OF POWER.CONTROLLED.
The system moves air through three AeroCurve fans, thermal modules for the GPU, memory and VRM, composite heatpipes and a fin assembly built to exhaust heat. The visual flow is illustrative, not a thermal simulation.
- 01Cool air enters
- 02AeroCurve drives
- 03GPU · memory · VRM
- 04Heatpipes distribute
- 05Warm air exits
Free Flow
Integrated cooling
Honeywell PTM7950
NITRO+ ENGINEERING
NOT JUST FAST.BUILT TO HANDLE IT.
FrameDefense, a cold-rolled steel frame, metal backplate, high-TG copper PCB, 16-phase digital power and fuse protection form a structure designed for stability and serviceability.
- FrameDefense
- Cold-rolled steel
- 12-layer high-TG PCB
- 16-phase digital power
- Fuse protection

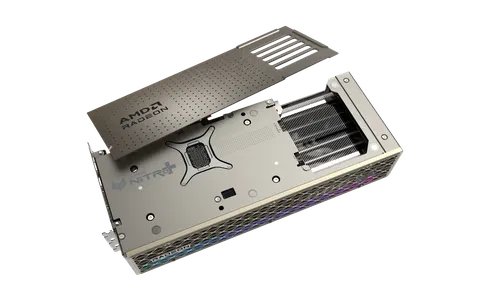

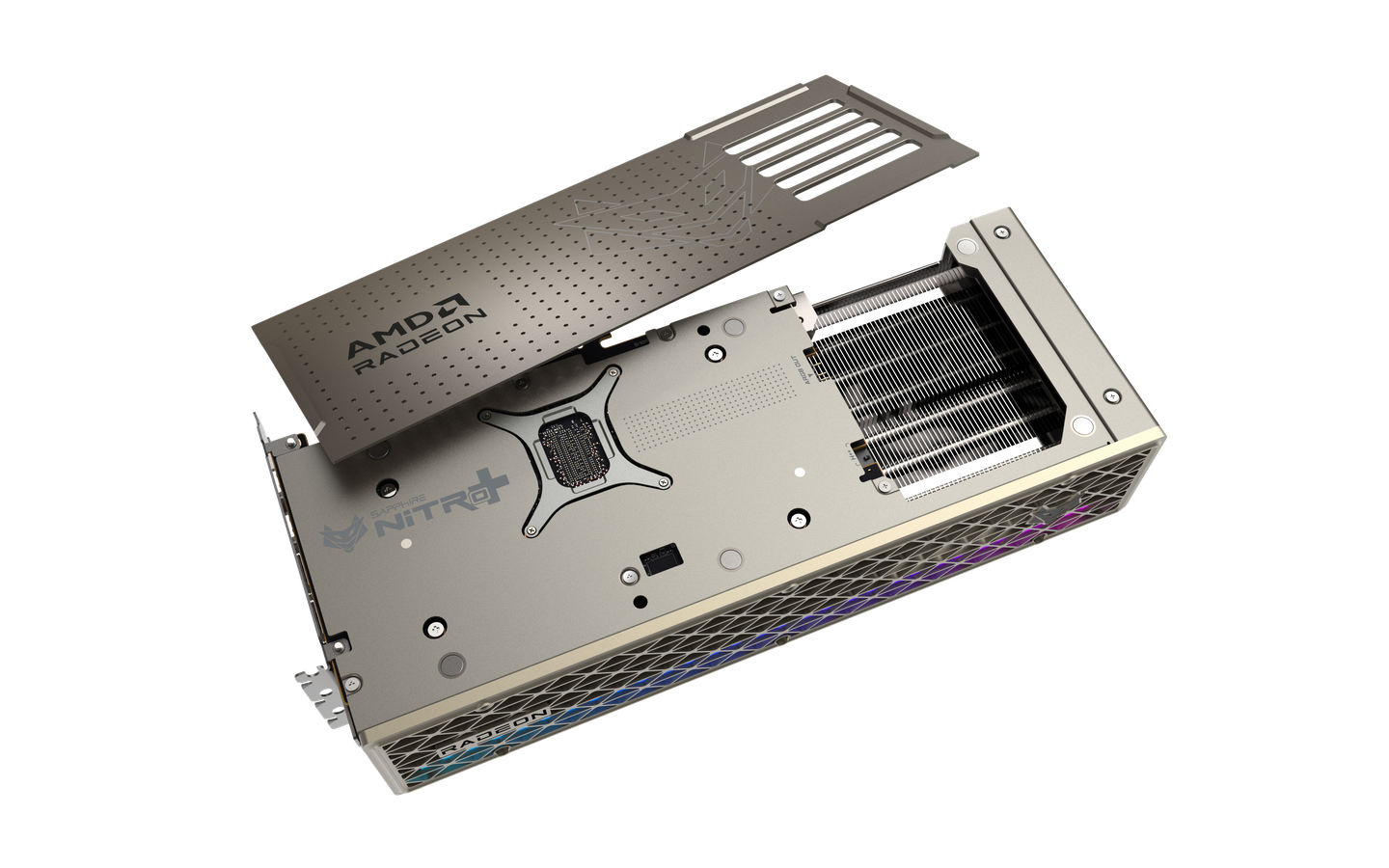

MAGNIPLATE QUICK CONNECT
BACKPLATE
The metal backplate adds structural rigidity and helps conduct and dissipate heat from the rear. MagniPlate Quick Connect uses a magnetic attachment designed to simplify removal and access.
VISUAL LIGHTING PREVIEW
YOUR SETUP. YOUR LIGHT.
The selector changes only the ambient light in this demonstration. It does not guarantee an exact physical color match or alter the card’s actual illuminated zones.
SAPPHIRE NITRO+
ENGINEERING IN DETAIL
Technologies verified in the model’s official documentation and explained in FASE NUEVE’s own voice.

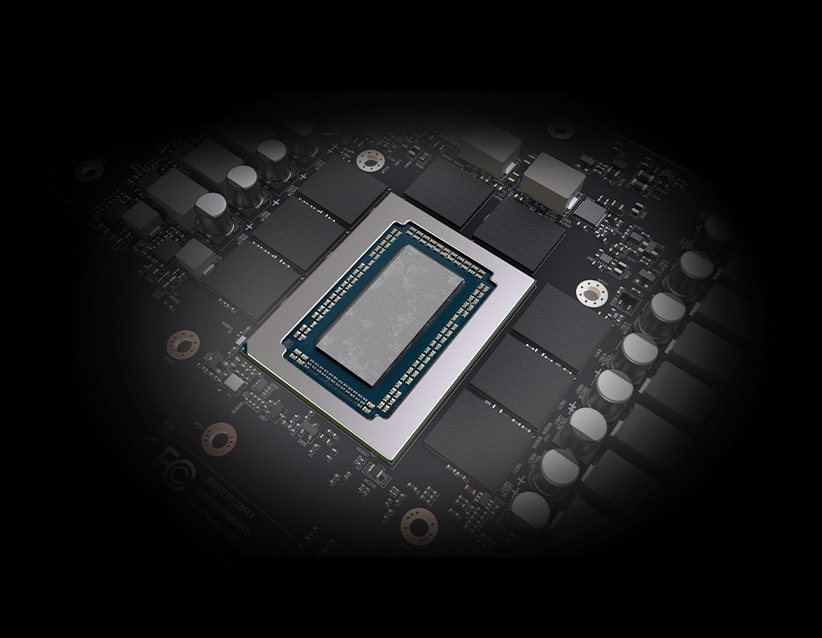

Honeywell PTM7950
A high-performance thermal interface between the chip and cooling assembly to support stable heat transfer.
MagniPlate Quick Connect
A magnetic backplate designed for clean installation, easier access and structural support.

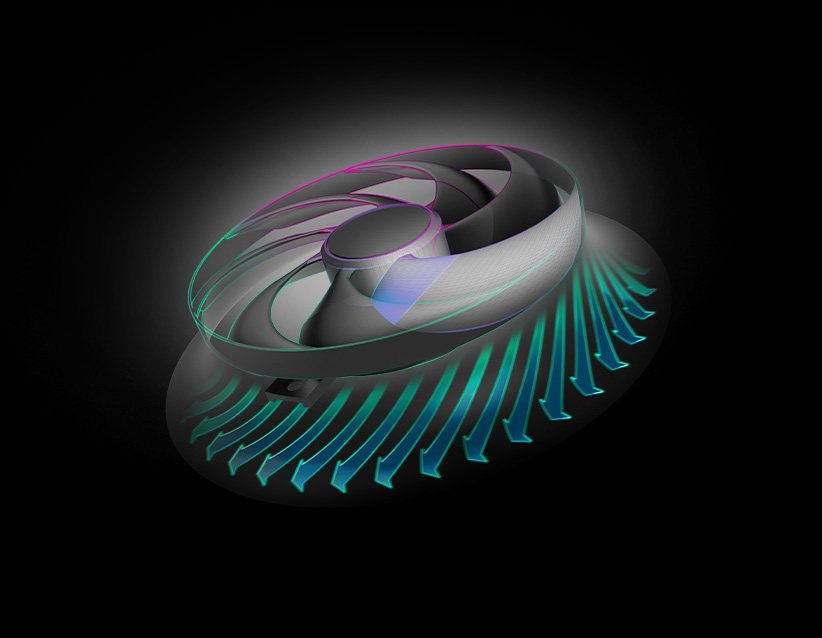

AeroCurve fan blade
A refined geometry intended to move air with less friction while preserving useful static pressure.
STEALTH hidden power cable
The power input is integrated to reduce visible cabling and keep the build organized.

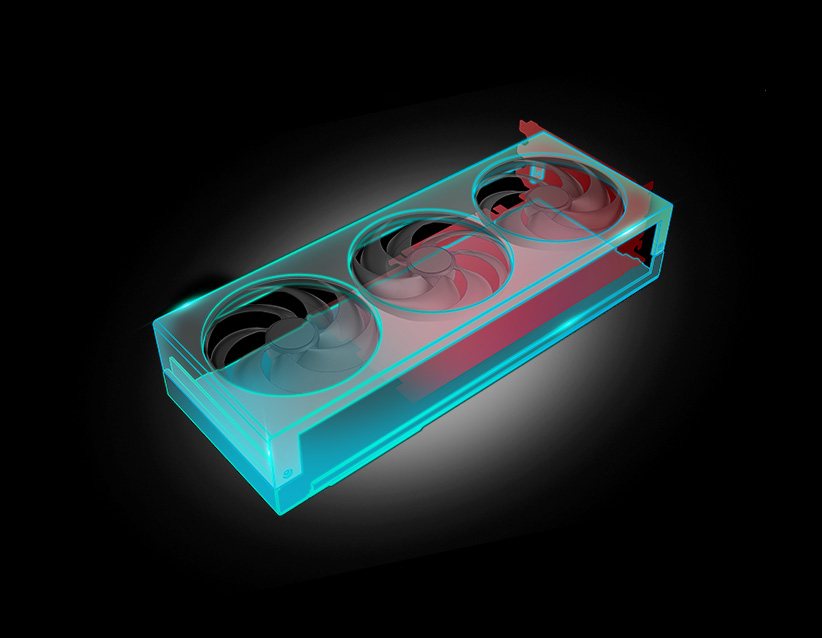

FrameDefense
A box-style frame protects and stabilizes internal components during installation and operation.
Cold-rolled steel frame
Reinforces the shroud and works with the backplate to create a rigid assembly.

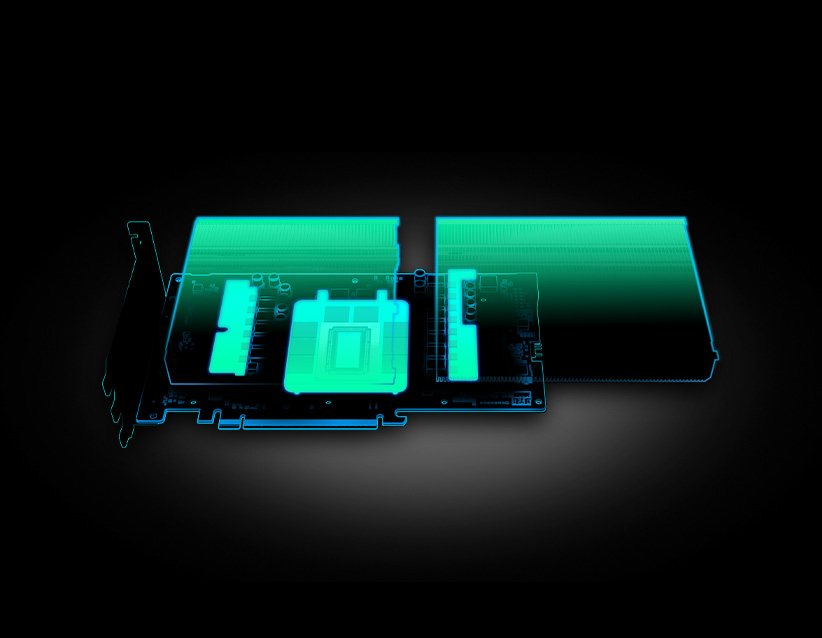

Integrated cooling module
Manages heat from the GPU, memory and power stages as a coordinated system.

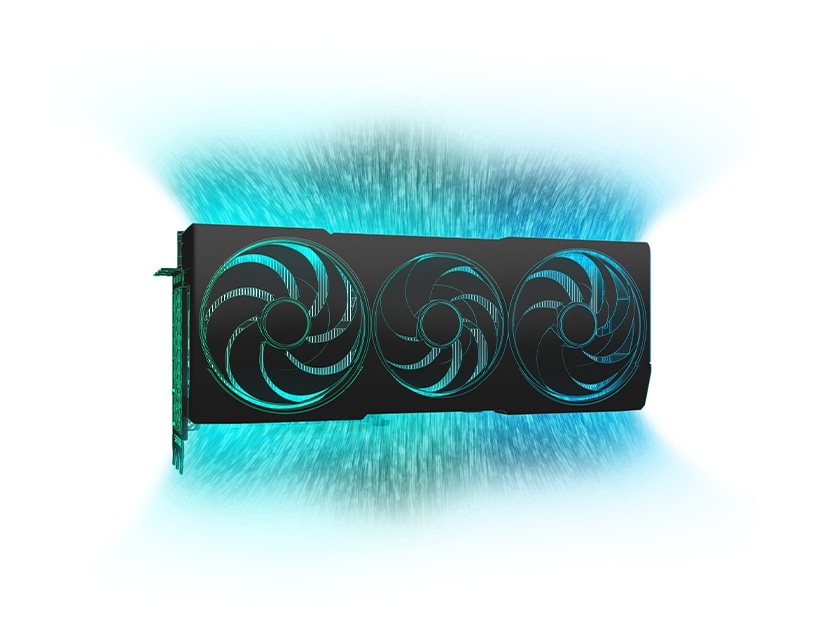

Free Flow
The fin design channels air and reduces turbulence through the heatsink.

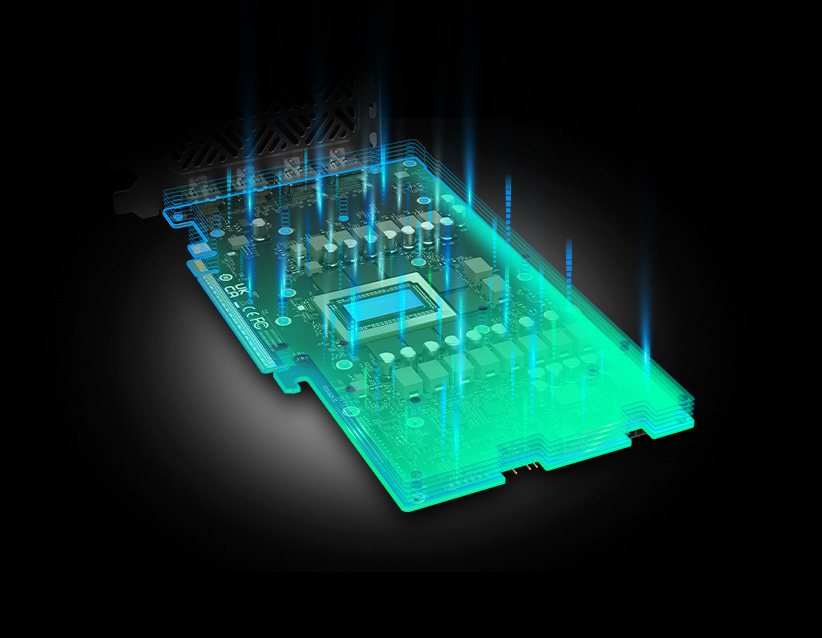

High-TG copper PCB
A 12-layer, 2-ounce copper PCB prepared for high current and demanding loads.

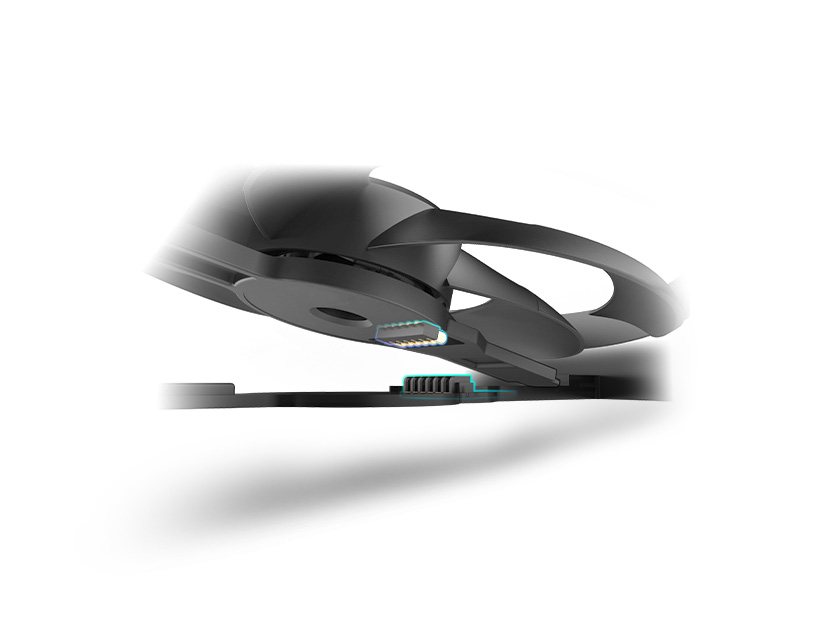

Quick Connect fan
Fans can be removed with one screw for cleaning or authorized replacement.

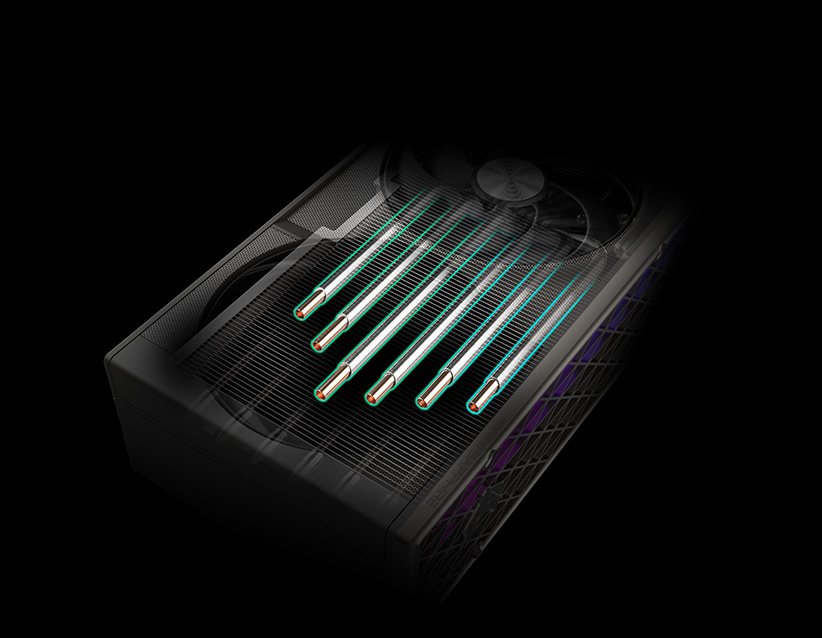

Optimized composite heatpipes
Spread heat across the module to use more of the heatsink surface.
Dual-ball bearing
A design aimed at extended service life and consistent operation.

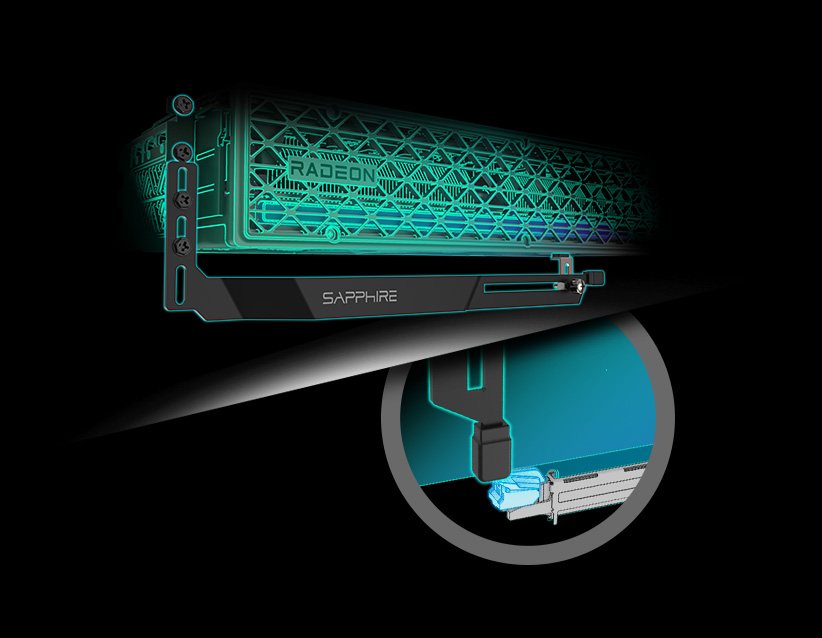

L-shaped GPU bracket
Helps support the card and assists careful removal during maintenance.

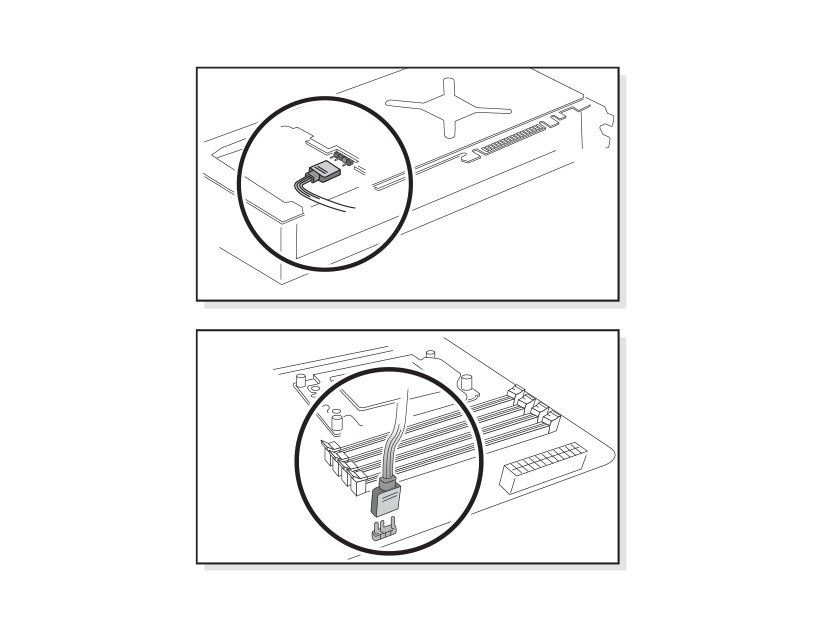

External ARGB synchronization
Lets a compatible motherboard control lighting through the ARGB header.
ARGB Light Bar
Integrated lighting controllable through TriXX or compatible external synchronization.

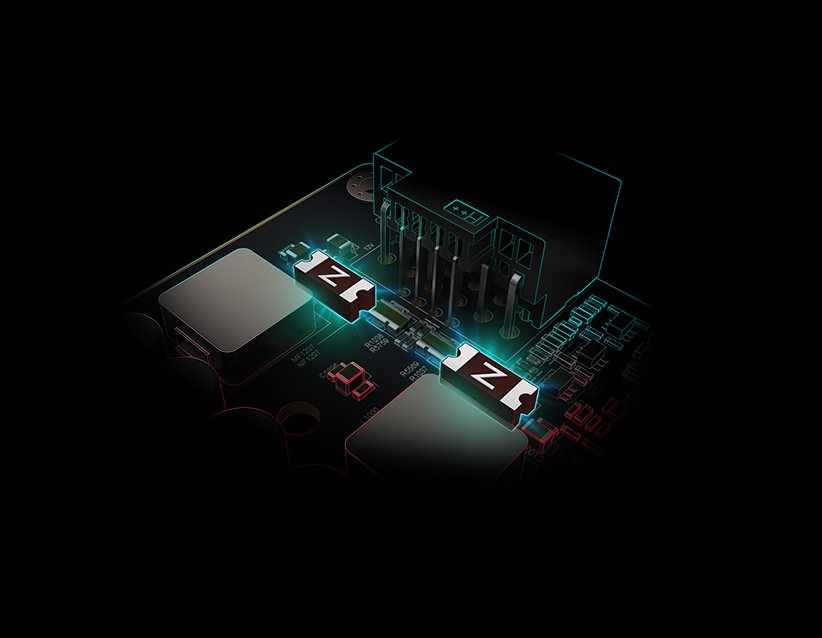

Fuse protection
Integrated protection on the external PCIe power circuit.

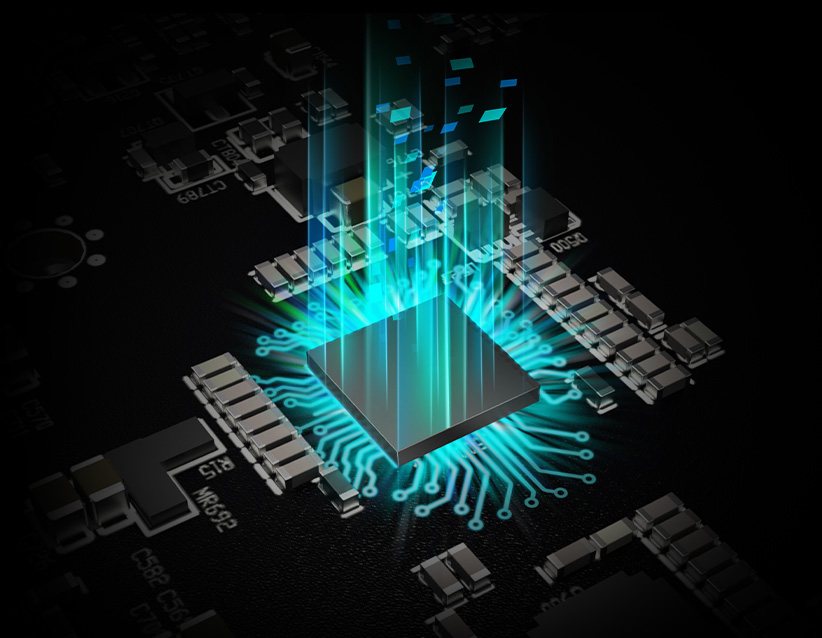

16-phase digital power
Precise power control for stable, efficient delivery.

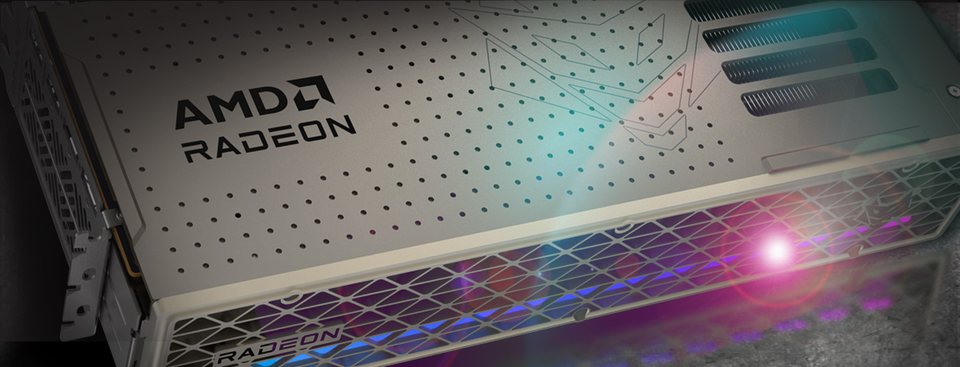

Metal backplate
Adds rigidity and contributes to heat dissipation from the rear of the card.
GUIDANCE-ONLY CHECK
WILL IT FIT YOUR PC?
330,8 mmLength
128,5 mmHeight
65,68 mmThickness
3,2 slotsRequired space
850 WMinimum PSU
12V-2x6Power
Insufficient information
Enter at least clearance, power supply and connectors for a preliminary assessment.
This check is for guidance only. FASE NUEVE must validate the complete system before confirming installation.
POWER CABLE INSTALLATION
CONNECT WITHOUT GUESSWORK.
Use an appropriate power supply, fully insert the 12V-2x6 connector, avoid extreme bends next to the connector and use only compatible cables or adapters. Always follow the manufacturer’s official instructions.
- 850 W minimum recommended by SAPPHIRE
- 12V-2x6 (H++)
- 3 × 8-pin adapter included
- Full insertion and cable clearance
EVERY ESSENTIAL
FULL SPECIFICATIONS
Description
The SAPPHIRE NITRO+ Radeon RX 9070 XT OC 16GB combines AMD RDNA 4 architecture with a NITRO+ implementation focused on cooling, reinforced construction, digital power delivery and refined ARGB integration. It is intended for high-performance systems that can accommodate a 330.8 mm, 3.2-slot card and Sapphire’s recommended minimum 850W power supply.
Specifications
| GPU | AMD Radeon RX 9070 XT |
|---|---|
| Architecture | AMD RDNA 4 |
| Memory | 16 GB GDDR6 |
| Memory bus | 256-bit |
| Effective memory speed | 20 Gbps |
| Boost clock | Up to 3060 MHz |
| Game clock | Up to 2520 MHz |
| Stream processors | 4096 |
| Compute Units | 64 |
| Ray Accelerators | 64 |
| AI Accelerators | 128 |
| Infinity Cache | 64 MB |
| Interface | PCI Express 5.0 x16 |

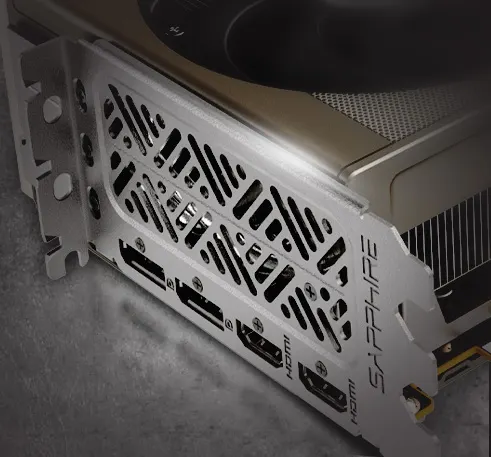

| HDMI | 2 × HDMI |
| DisplayPort | 2 × DisplayPort 2.1a |
| Maximum displays | 4 |
| Dimensions | 330.8 × 128.5 × 65.68 mm |
| Form factor | 3.2 slots, ATX |
| Typical board power | 330 W |
| Recommended PSU | 850 W minimum |
| Power connector | 12V-2x6 (H++) |
| Included adapter | 12V-2x6 to 3 × PCIe 8-pin |
| Cooling | Tri-X · AeroCurve · Free Flow · integrated module · composite heatpipes |
| Lighting | ARGB Light Bar · external motherboard synchronization |
Specifications verified against SAPPHIRE’s official product page.
In the box
- SAPPHIRE NITRO+ AMD Radeon RX 9070 XT OC 16GB graphics card
- L-shaped support bracket
- 3-pin 5V ARGB cable
- MagniPlate magnetic backplate
- 12V-2x6 to 3 × PCIe 8-pin power adapter
Compatibility
This check is for guidance only. FASE NUEVE must validate the complete system before confirming installation.
CHECK COMPATIBILITY →COMPATIBILITY BEFORE VOLUME
COMPLETE YOUR SETUP
We do not yet publish a power supply, case or support as an automatic companion for this GPU. Products will appear only when they exist in the catalog and compatibility can be checked.
